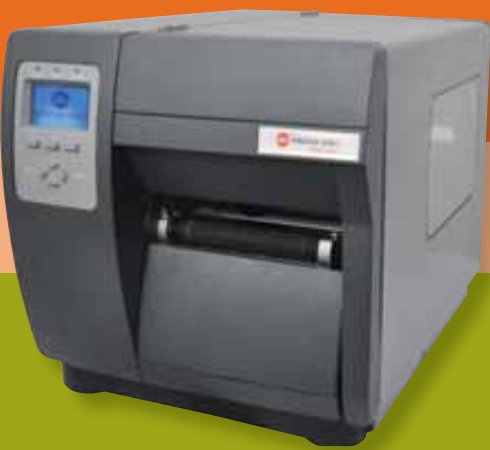

霍尼韦尔Honeywell I-Class Mark II 中等范围工业条码打印机具备您所需的速度和耐用性，可用于送货过程中的高生产率用途、产品标识、药品标签和资产追踪。

霍尼韦尔Honeywell I-Class Mark II 打印机作为高品质打印机，在行业内享有传奇的声誉，在价格、可靠性和易于集成方面都具有优势。

霍尼韦尔Honeywell I-Class Mark II 点击配备很多标准功能，包括快速处理器、较大内存，以及多种通信端口。另外，IntelliSEAQ™ 打印头采用耐用的涂层，具有更好的耐磨性和更长的使用寿命。

霍尼韦尔Honeywell I-Class Mark II 打印机同样为多功能。广泛的介质兼容性、连接、模拟支持和选项可用于多种行业应用。

霍尼韦尔Honeywell I-Class Mark II 打印机规格概览：

•打印头：热敏；可选热转印

• 介质卷宽：25.4 mm 至 118.1 mm（1.0 in 至 4.7 in）

• 最大打印宽度：105.7 mm (4.16 in)

• 打印速度： • I-4212e: 304 mms (12 ips), 8 mmps (203 dpi)

• I-4310: 254 mms (10 ips), 12 mmps (300 dpi)

• I-4606: 152 mms (6 ips), 24 mmps (600 dpi)

• 以太网有线局域网 10/100，配备 WPA2 安全协议的有线局域网，2 USB 主机端口和 SDIO、GPIO 接口卡

霍尼韦尔Honeywell I-Class I系列条码打印机技术参数：

MECHANICAL

Dimensions (HxWxD):

322.6 mm x 320.5 mm x 472.4 mm

(12.7 in x 12.6 in x 18.6 in)

Weight:

20.5 kg (45 lbs)

Construction:

Metal cabinet, clear side windowto easily monitor media supply levels

ENVIRONMENTAL

Operating Temperature:

0°C to 40°C (32°F to 104°F)

OPTIONS

2 USB Host, SDIO Cast Peel Present and Internal Rewind Cutter (10 mil) Ethernet-Wired LAN 10/100 Ethernet-Wired, W-LAN 802.11 a/b/g with GPIO Applicator Interface Card ILPC (Hangul, Simplified Chinese, and Kanji) Internal Rewind Thermal Transfer WPA2 Security Protocol

POWER SOURCE

Electric:

Auto-sensing 90-132 or 180-264VAC @ 47-63Hz

ACCESSORIES

External Rewinder Media Tray for Cutter

PRINT SPECIFICATIONS

Printer Type:

Direct thermal, optional thermal transfer

Print Speed:

I-4212e; 304 mms (12 ips), 8 mmps (203 dpi)

I-4310; 254 mms (10 ips), 12 mmps (300 dpi)

I-4606; 152 mms (6 ips), 24 mmps (600 dpi)

MEDIA COMPATIBILITY

Media Types:

Roll-fed: 203.2 mm (8.0 in) O.D. on a 38.1 mm (1.5 in) to 76.2 mm (3.0 in) core, fan-fold stock, accepted from rear of printer, die-cut or continuous labels, perforated or continuous tag/ticket stock

Minimum Media Length:

Tear-off and rewind modes: 6.4 mm (0.25 in) Peel and cutter modes: 25.4 mm (1.0 in)

Media Width Range:

25.4 mm (1.0 in) to 118.1 mm (4.7 in)

Media Thickness Range:

0.06 mm (0.0025 in) to 0.25 mm (0.01 in)

Media Sensing:

“See through” for liner-backed die-cut labels and tags, reflective sensor for black- mark label media

Label Backfeed:

For use with optional cutter

Ribbon Width Range:

25.4 mm (1.0 in) to114.3 mm (4.5 in) Ribbon Core: 25.4 mm (1.0 in) Ribbon Length: 600 m (1,968 ft)

Ribbon Core:

25.4 mm (1.0 in)

Ribbon Length:

600 m (1,968 ft)

Coated-Side-In and Coated-Side-Out

For optimum print quality and printerperformance, use certified Honeywell mediasupplies.

AGENCY APPROVAL

Contact your Honeywell sales representative forthe most recent list of agency approvals.

COMMUNICATIONS INTERFACE

Communication Ports (Standard):

Serial RS232, USB 2.0, Parallel bi-directional

Communication Ports (Optional):

10/100 BaseT Ethernet, 2 USB host & SDIO, W-LAN, 802.11a/b/g, GPIO applicator interface card

WARRANTY

Standard Warranty:

Printer(Covers platen roller, printhead and installed options):

1 year

Printhead(Covers platen roller, printhead and installed options):

1 year or 25,400,000 mm (1,000,000 in), which ever comes first

Extended Warranty:

Contact your Honeywell sales representative for extended warranty options available through Honeywell Repair Services

SOFTWARE

NETira™ CT - Complete printer setup utility NETira™ LD - Label-design software Embedded network web pages Windows® Drivers - NT, XP, Vista

Firmware:

Auto Detect - DPL, PL-Z,or PL-I - CLASS MARK II

SUPPORTED BARCODE SYMBOLOGIES

Linear Symbologies:

Linear: Code 3 of 9,UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128,EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC2 and 5 Digit Addendums, Postnet, UCC/EAN Code 128, Telepen, Planet code, FIM, USPS-4 State

2D Symbologies:

MaxiCode, PDF417, USD-8,Datamatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 Databar

Resident Fonts:

Ten alphanumeric fonts from 2.5- to 23-point including OCR-A, OCR-B, CG Triumvirate™ smooth font from AGFA®; Scalable Fonts: CG Triumvirate Bold Condensed, CG Triumvirate & CG Times with Cyrillic, Greek Arabic and Hebrew character support

Character Sets:

More than 50 resident character sets; Unicode/UTF8 support

Downloadable Font Types:

True-Type, Bitmap

Font Expansion/Rotation:

All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°

Graphics Supported:

.pcx, .bmp, .img and ASCII format files

Reversible Field/Mirror Image:

Any font orgraphic field can be printed as a normal or reverse image
